Mold Flow Analysis

What is Moldflow?

Moldflow simulation software lets you troubleshoot problems with plastic injection and compression molding. Advanced tools and a simplified user interface help you address manufacturing challenges, such as part warpage, cooling channel efficiency, and cycle time reduction. This software simulates your mold conditions before you pay money for tooling. A accurate mold is one of the key to have quality injection parts, so moldlow is one analysis that are quite important testing to make the plastic injection mold from good to excellence.

Is Moldfow necessary for every application?

MoldFlow is not necessary to use on every application, based on the product geometry, tolerance requirements and if the raw material is unusual or not, we will make suggestions for the inclusion of flow analysis costs into the program.

What we can see from Moldflow analysis?

Moldflow Filling Analysis

✓Optimize gating
✓Optimize runner system
✓Predict fill pattern
✓Predict injection pressure
✓Determine clamp tonnage
✓Predict temperatures
✓Visualize shear rate
✓Visualize shear stress
✓Determine fiber orientation
✓Predict volumetric shrinkage
✓Predict sink
✓Determine venting
✓Avoid air traps
✓Locate weld (knit) lines
✓Develop optimum ram-speed profile
Moldflow Gas-Assist Analysis
✓Determine optimized gas channel layout
✓Predict gas penetration
✓See gas permeation
✓Predict skin/core ratio Establish required gas pressure
✓Define optimized gas pressure profile

✓Refine spillover design

Moldflow Cooling Analysis

✓Find hot spots
✓Calculate time to freeze
✓Visualize uneven cooling across core and cavity
✓Determine uneven cooling between core and cavity
✓Define required coolant flow rates
✓Measure pressure drop in cooling system
✓Determine (and reduce) cycle time
✓Optimize the cooling layout
Moldflow Packing Analysis
✓Calculate proper packing pressure
✓Define optimum packing profile
Moldflow Warpage Analysis
✓Predict warpage
✓Find cause of warpage
✓Determine warpage due to orientation
✓Predict warpage due to differential cooling
✓Understand warpage due to differential shrinkage
Moldflow Co-Injection Analysis
✓Compute skin/core ratio
✓Calculate skin/core distribution
✓Establish switch over points for skin/core (A-B)
✓Establish switch over points skin/core/skin (A-B-A)

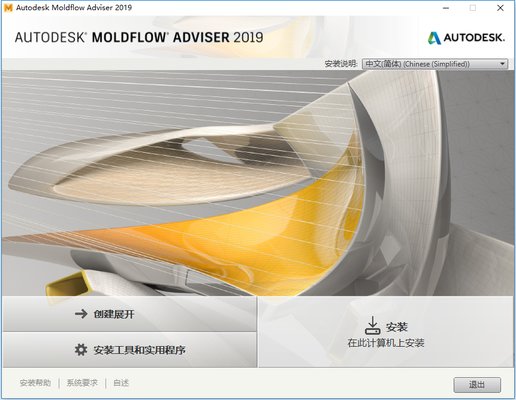

Autodesk Moldflow

Benefit Of Moldflow Analysis

  • Optimization of part and mold designs.
  • Optimization of feed system – balancing of flow.
  • Optimization of molding process.
  • Quickly check the manufacturability of plastic part design.
  • Polymer selection – evaluation of alternate polymers.
  • Warpage and shrinkage analysis
  • Cooling analysis.
  • Productivity improvements.

Moldflow Samples

  • Moldflow sample-1
  • 1
  • 2
  • 3
